Balboa BP200UX Control Box

Features

• Lowest cost entry level BP System
• Compact size with removable feet
• Heater sold separately,
• BP capable features
• WiFi (bwa™ & ControlMySpa™), Balboa Bluetooth Audio (bba™), Newest TP/SpaTouch™ Panels
• Can be customized to fit your needs
• BP100: North America. BP200: International

The all NEW Balboa Water Group Hot Tub application for the Android®, iPhone®, iPod touch® or iPad®.

• Wi-Fi Enabled
• Overheat Fault Detection for Runaway Pumps / Stuck Relays
• New Software with Color Graphics
• Multiple Languages
• Comprehensive Diagnostics
• Expandable, Configurable. Supports Dozens of Spa Setups

Dimensions

• Length: 435 mm (inc heater) 330 mm (box only)
• Width: 160 mm
• Height: 220 mm

Specifications

Pump 1: Dual speed pump or Single speed if circulation pump used
Heater: x 1 (3kW)
Light: 1 Amp Max at 10 volts

Connections:

2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components

Additional Info

• The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
• This system has been designed to be able to run from the comfort of your home or whilst you are at work or away.

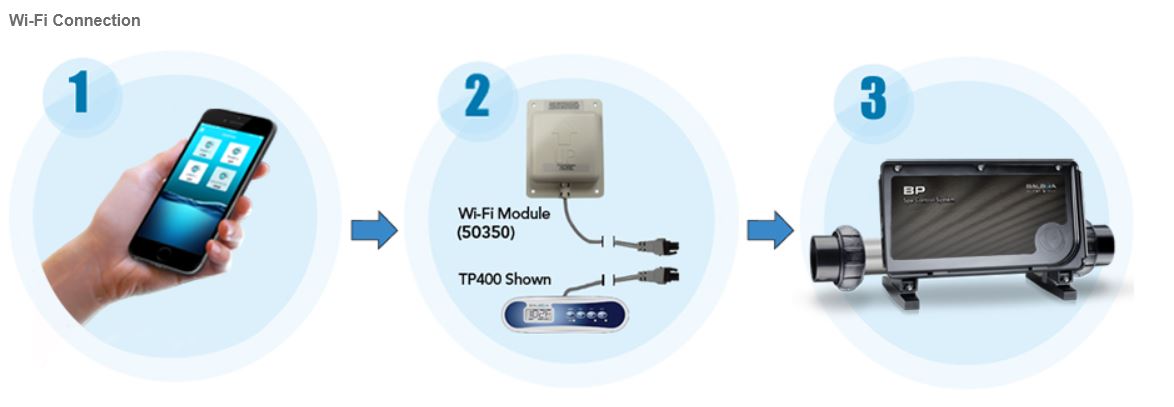

• With the addition of the new WiFi receiver, the BP200 can be operated via Android®, iPhone®, iPod touch® or iPad®
• This is a generic unlicensed control box.
• This unit must be fitted by a competent individual or tradesman.
• Incorrect installation could invalidate the warranty.dim

System Specifications:

Balboa BP100/200 Spa System
